How to monitor a Software-Raid on Windows 2003 by using the EventLog
Monitor of MonitorWare Agent.
Article created 2008-01-17 by Andre Lorbach.
This article will guide you in how to monitor a software raid on Windows 2003
by filtering specific events by using the EventLog Monitor in MonitorWare Agent.
This is also possible with EventReporter, however this article will target the
more powerful MonitorWare Agent.
- You can
download a preconfigured configuration from here, which you can import
on your target system. The configuration sample will have comments for
better understanding. The MonitorWare Agent Client can
import the XML/REG configuration file by using the "Computer Menu".
Raid Systems have a big advantage for failover support and prevent data loss.
But what when a hard disk is failing, you don't know it? Windows Server Systems
often run for months without being monitored, and what if two hard disk fail in
this time period? A nightmare for every system administrator. So we will setup a
EventLog Monitor in MonitorWare Agent which alert you by email in case of a raid
brakes, a hard disk fails or anything else bad happens.
1.
Creating a Windows Software Raid (Skip if Raid exists!)
1.1 Convert Hard disks into
dynamic disks
1.2 Adding a
Mirror to the existing system partition
2. Installing and
Configuring MonitorWare Agent
2.1 Download and
Install MonitorWare Agent
2.2 Setup up basic
MonitorWare Agent configuration
2.3 How to verify that
the alert is working?
Final Thoughts
|
So in case you have no Software Raid configured yet, open the Computer
Management und go to the Disk Management. You will see your System drive and you
should have a second hard disk with enough free space available. For a sample
see the screenshot.
|
|
|
 Right-Click
one of the disks and click on "Convert to Dynamic Disk". A wizard will appear,
select both hard disks, the system one and the one you are going to use as raid
mirror. Once you have accepted this, a couple of questions will follow which you need
to accept and finally a reboot is required. This is because Windows can not
convert a hard disk if the system is running on it.
|
|
|
 Once
you have rebooted, logged in and open the Disk Management. You will notice the
different partition color. This means your system partition runs on a dynamic
disk now, the conversion went fine. If not review the System EventLog for
possible errors. |
Back to Top
 All
requirements for a software raid (mirror) are now given, so kindly right click your
system partition and click on "Add Mirror". A requester will
open which will ask you on which disk you want to add the mirror. In our sample,
this would be disk 1. After the mirror has been added, Windows will start
regenerating the mirror which means it will sync both hard disks. This may take
some time depending on the size of your hard disk, maybe even hours.
|
|
|
 As
you can see the partitions are now marked red which represents the color for
mirrored partitions. After
the synchronization has finished, the red partitions will be marked as
healthy in the Disk Management view.
|
Back to Top
|
So if you haven't done so already, go to
www.mwagent.com and download
the latest MonitorWare Agent Version. It is always recommended to use the latest
Version of MonitorWare Agent. Once the Download is done, go ahead and install
it. You may have to restart after installation, this depends on your System.
|
Back to Top
|
 Start
the MonitorWare Agent Client and skip the wizard on startup. First we create new
"Event Log Monitor" Service. Uncheck all event log types except
System, as this is the only event log needed to achieve our
goal. If you like to monitor other Event Log Types too, you may select them. It
will have no impact on our following configuration.
|
|
|
|
 Now
we can add another Rule called "Send Email Alert". This rule will have
a few
filters to only allow events with warning or error severity. The Eventlogtype is System and the event sources
which matter to us are
dmio and dmboot. The filters should look like
in this screenshot.
For additional reference, here is a list of possible dmboot und dmio
events:
Event ID 1: "dmboot: Volume %2 (no
mountpoint) started in failed redundancy mode."
Event ID 2: "dmboot: Volume %2 (%3)
started in failed redundancy mode."
Event ID 3: "dmboot: Failed to
start volume %2 (%3)"
Event ID 4: "dmboot: Failed to
encapsulate selected disks"
Event ID 5: "dmboot: Disk group %2
failed. All volumes in the disk group are not available."
Event ID 6: "dmboot: Failed to
auto-import disk group %2. All volumes in the disk group are not available."
Event ID 7: "dmboot: Failed to
restore all volume mount points. All volume mount points may not be
available. %2"
Event ID: 1, "dmio: Device %2,%3: Received spurious close"
Event ID: 2, "dmio: Failed to log the detach of the DRL volume %2"
Event ID: 3, "dmio: DRL volume %2 is detached"
Event ID: 4, "dmio: %2 error on %3 %4 of volume %5 offset %6 length %7"
Event ID: 5, "dmio: %2 %3 detached from volume %4"
Event ID: 6, "dmio: Overlapping mirror %2 %3 detached from volume %4"
Event ID: 7, "dmio: Kernel log full: %2 %3 detached"
Event ID: 8, "dmio: Kernel log update failed: %2 %3 detached"
Event ID: 9, "dmio: detaching RAID-5 %2"
Event ID: 10, "dmio: object %2 detached from RAID-5 %3 at column %4 offset
%5"
Event ID: 11, "dmio: RAID-5 %2 entering degraded mode operation"
Event ID: 12, "dmio: Double failure condition detected on RAID-5 %2"
Event ID: 13, "dmio: Failure in RAID-5 logging operation"
Event ID: 14, "dmio: log object %2 detached from RAID-5 %3"
Event ID: 15, "dmio: check_ilocks: stranded ilock on %2 start %3 len %4"
Event ID: 16, "dmio: check_ilocks: overlapping ilocks: %2 for %3, %4 for %5"
Event ID: 17, "dmio: Illegal vminor encountered"
Event ID: 18, "dmio: %2 %3 block %4: Uncorrectable %5 error"
Event ID: 19, "dmio: %2 %3 block %4:\r\n Uncorrectable %5 error on %6 %7
block %8"
Event ID: 20, "dmio: Cannot open disk %2: kernel error %3"
Event ID: 21, "dmio: Disk %2: Unexpected status on close: %3"
Event ID: 22, "dmio: read error on object %2 of mirror %3 in volume %4
(start %5, length %6) corrected"
Event ID: 23, "dmio: Reassigning bad block number %2 on disk %3"
Event ID: 24, "dmio: Reassign bad block(s) on disk %2 succeeded"
Event ID: 25, "dmio: Fail to reassign bad block(s) on disk %2: error 0x%3"
Event ID: 26, "dmio: Found a bad block on disk %2 at block number %3"
Event ID: 27, "dmio: Corrected a read error during RAID5 initialization on
%2"
Event ID: 28, "dmio: Failed to recover a read error during RAID5
initialization on %2: error %3"
Event ID: 29, "dmio: %2 read error at block %3: status 0x%4"
Event ID: 30, "dmio: %2 write error at block %3: status 0x%4"
Event ID: 31, "dmio: %2 write error at block %3 due to disk removal"
Event ID: 32, "dmio: %2 read error at block %3 due to disk removal"
Event ID: 33, "dmio: %2 is disabled by PnP"
Event ID: 34, "dmio: %2 is re-online by PnP"
Event ID: 35, "dmio: Disk %2 block %3 (mountpoint %4): Uncorrectable read
error"
Event ID: 36, "dmio: %2 %3 block %4 (mountpoint %5): Uncorrectable read
error"
Event ID: 37, "dmio: Disk %2 block %3 (mountpoint %4): Uncorrectable write
error"
Event ID: 38, "dmio: %2 %3 block %4 (mountpoint %5): Uncorrectable write
error"
 The
next step is to create a SendEmail Action and configure it like in the screenshot.
Here is the Event message we suggest to use, but feel free to create and
modify your own:
You need to replace the mail server, sender and recipient with yourself.
|
Back to Top
 There
is a simple way to test if our alerting is working, however it isn't without
risks. I only recommend you to do this step if your really want to test the
alerting! I do NOT recommend to perform this test on a
productive system!
First of all shutdown the server and open the case. Then disconnect the second
hard disk by removing the power or the data connector. Then boot the server,

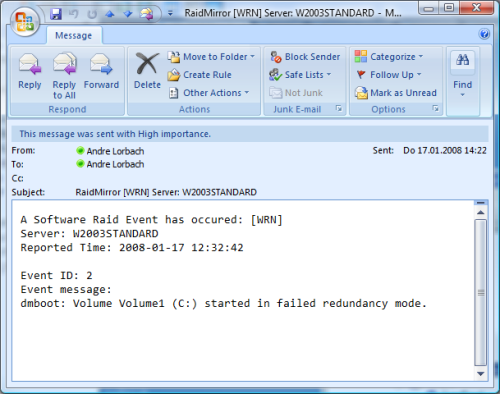

once windows is starting the services you should get an alert by email. It
should look like the sample email in the screenshot.
If the test was successful, you can shutdown your server again. Connect the
power / data connector and boot your server. You may receive the same email
message again, as the raid is now OUT OF SYNC. So you need to
open the Disk Management and right click the disk with the exclamation mark.
Then select "Reactivate Disk", the raid will begin resynchronization immediately
after this. |
|
|
Back to Top
I hope this article will help you solving your tasks and shows you the
potential of MonitorWare Agent, and what you can archive with it. Feel free to
email me for recommendations or questions.
|
