File Monitor

The file monitor monitors the content of a text file just as the event monitor monitors the NT event log. Its purpose is to gather vital information that is stored in system text files. Many applications do not write events to the event log but to a text file. This is also the case with many Microsoft applications (for example the WINS log).

The file monitor can also gather Internet Information Server (Windows' web server) log files. This is very useful for monitoring web activity and detecting attacks.

General Tab

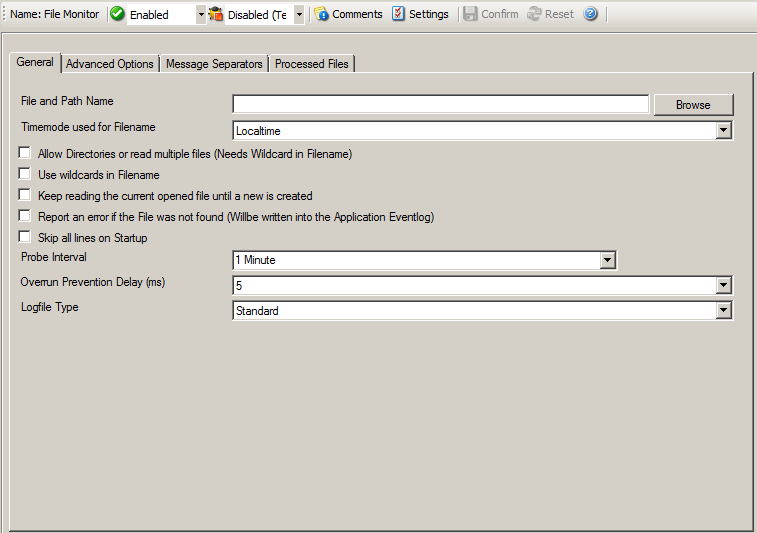

Figure 1: General Options

File and path name

Here, you must type the name of the file to be monitored. To select a file from any specified location, press the browse button. Once a complete file name is specified, exactly that file is monitored.

The file name is never changed automatically. However, many systems generate changing log files. For example, Internet Information Server (IIS) can be configured to change the log file every day. Therefore, each day's log file has a different name.

To support changing log file names, there are replacement characters available within the file name. These are:

Character Replacement Table

Please note: the replacement characters are case sensitive!

For example, daily Internet Information Server log files are named "exyymmdd.log", with yy being the 2 digit year, mm the month and dd the day of month. To generate the same name with file monitor, use the following name "ex%y%m%d.log".

Please note that there is no replacement character for the monthly week number (1st week, 2nd week). As such, the weekly log file setting of IIS is not supported.

TimeMode Used for Filename

Select the time mode used for the log file to be monitored with this drop-down list. Available options are:

Allow Directories or read multiple files

This is the new Multiple Files feature which means you can now read an array of files. This will require a wildcard in the filename. If using directories, the amount of subdirectories is unlimited.

Use Wildcard in Filename

This option allows you use * as random character sequence in the filename.

Please note: this character can only be used in Filename and not in the filepath.

Keep reading the current opened file until a new is created

This has been added to define if the Service shall continuously read an open logfile until a new file (depending on the configured filename) is available. This Options is helpful for such cases where you don't know when a new logfile is generated and the old one is closed.

Report an Error if the File was not found

As the name says, if this setting is enabled, an error is reported in the Windows Eventlog if the file was not found.

Skip all lines on Startup

If this option is enabled, the File Monitor will skip all new lines of a logfile during startup. This will work in singlefile mode as well as multifile mode.

Check Interval

This interval is in miliseconds. After the specified interval the file monitor checks the file for new records.

We recommend a value of 60000 milliseconds for the "Check Interval". With that setting, the file monitor checks for new records every 60 seconds. Larger periods can be specified for occasionally connected systems or if email delivery with few emails per day is intended.

Very security-aware environments might use a shorter interval. The MonitorWare Agent 3.0 is specifically designed to limit the burden on the monitored system. As such, resource usage is typically low, even with frequently run file monitor checks. However, we recommend not running the file monitor more often than once a second.

Overrun Prevention Delay

This property allows configuring a delay after generating an event. The time for the delay is in miliseconds.

If run at a value of zero, the MonitorWare Agent 3.0 generates events as fast as the machine permits. We have seen scenarios where routers and receivers are not able to keep up with this rate, resulting in packet loss. In addition, the CPU of the reporting machine is run at 100% - which is not a problem because MonitorWare Agent 3.0 runs at a low priority. However, with even a 1-millisecond delay, there is no noticeable CPU activity even when large bursts of events are forwarded. At one millisecond, MonitorWare Agent 3.0 can still generate 1000 events per second.

The default setting is an overrun protection of five millisecond, which allows roughly 200 events per second. This should be sufficient for even very busy servers.

Logfile Type

Select the type of the log file to be monitored with this drop-down list. Available options are:

Advanced Options Tab

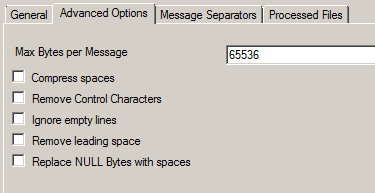

Figure 2: Advanced Options

Max Bytes per Message

Maximum value of bytes that the file monitor reads per line. If a message is larger then this value, the message splits into multiple parts.

Compress spaces

This option compresses sequences of spaces found inside the message to a single one.

Remove Control Characters

Removes control characters like CR and LF(carriage return and line feed).

Ignore empty lines

As the name allready says, this option discards empty lines within the logfile.

Remove leading space

If there are any leading spaces in the file, this option removes them.

Replace NULL Bytes with spaces

If this option is enabled, the FileMonitor will replace NULL Bytes within files with spaces. These spaces again can be compressed with the "Compress spaces" options.

Message Separators Tab

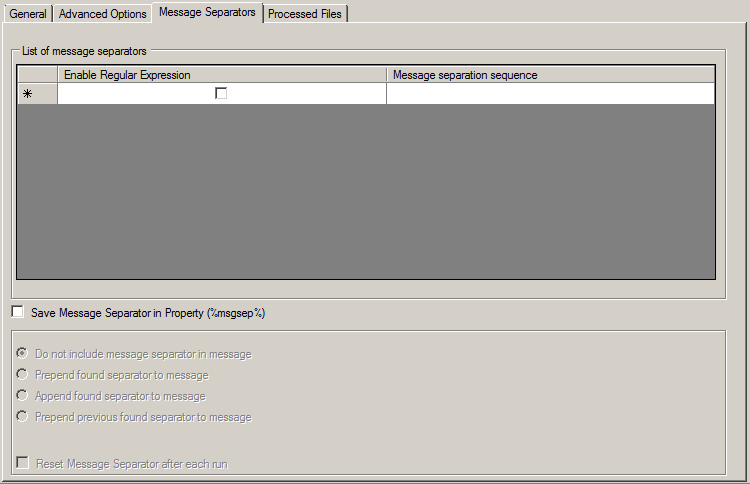

Figure 3: Message Separators

Message separation sequence

The customizeable separation sequence when this option is enabled. The file monitor splits messages by this value. If it is disabled crlf (carriage return line feed) is used.

If using multiple separation sequences, the comparison operation will be held as an OR operation. That means, that either this value or another value has to be true, so a message can be split. This is especially important for logfiles with different log formats.

To date, the following characters are available:

Enable Regular Expression

When enabled, the Message separation sequence will be handeled as regular

expression. Everything known in the regular expression syntax can be used to

define a matching pattern.

Here are some regular expressions samples:

Regular Expression: [0-9]{4,4}-[0-9]{1,2}-[0-9]{1,2}[0-9]{1,2}:[0-9]{1,2}:[0-9]{1,2}

Matches typical Date like 2015-11-20 12:11:01

Regular Expression: \n[0-9]{4,4}

Matches Linefeed and 4-digit number.

Regular Expression: (;|:)

Matches semicolon or a colon.

More samples and details about the Regular Expression Syntax can be found here:

https://msdn.microsoft.com/en-us/library/bb982727(v=vs.90).aspx

Save Message Seperator in Property

If this option is enabled, the current and last used message seperator will be saved into the properties %msgsep% and %msgseplast%.

When using regular expression as message separators, it might be needed to append or prepend the message separator to the message itself. For these cases, we have multiple way to do this:

Do not include message separator in message

Message Separator will not be included in the message

Prepend found separator to message

When enabled, the current found message separator will be prepended to the message.

Append found separator to message

When enabled, the current found message separator will be appended to the message.

Prepend previous found separator to message

When enabled, the previous found message separator will be prepended to the message.

Reset Message Seperator after each run

If enabled, the message seperator values will be resetted after the File Monitor has finished a run (reached the end of a file).

Processed Files Tab

On this tab you see all files in a datagrid that file monitor has yet processed. Select a file within this grid to see its data values like the last file position.

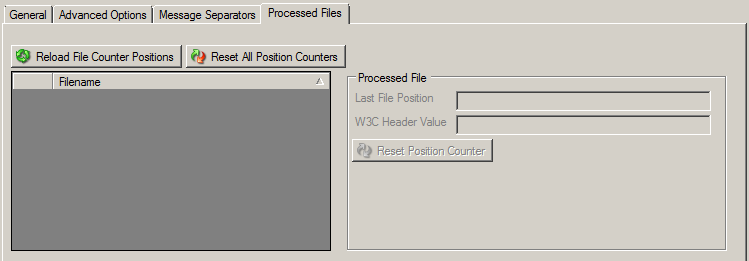

Figure 4: Processed Files

Last File Position

This is the last file (Byte) position that the File Monitor processed. Lower or Reset the Position Counter if you want to reprocess the file partially or even fully.

W3C Header Value

If logfile type is set to “W3C Webserver Logfile”, this value will be filled with a list of field types taken from the W3C Field header.

Reload File Counter Positions

Use this button to reload file counters as the Client does not automatically reload these values while running.

Reset All Position Counters

Warning, when using this button, all file counters will be set back to 0. This means all files in the list will be reprocessed during next iteration of the File Monitor.

General Values

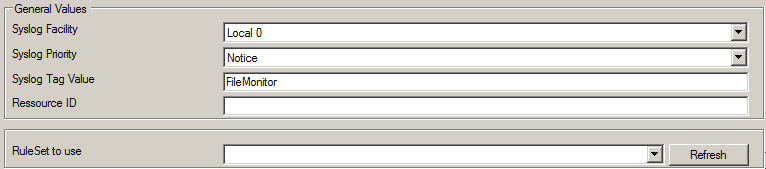

Figure 5: General Values

Syslog Facility

The Syslog facility to be assigned to events created by the service. Most useful if the message shall be forwarded to a Syslog daemon.

Syslog Priority

The Syslog priority to be assigned to events created by the service. Most useful if the message shall be forwarded to a Syslog daemon.

Resource ID

The Resource ID  to be assigned to events created by the service. Most useful if the message shall be forwarded to a Syslog daemon.

Syslog Tag Value

The Syslog tag value to be assigned to events created by the service. Most useful if the message shall be forwarded to a Syslog daemon.

Default Ruleset Name

Name of the rule set to be used for this service. The Rule Set name must be a valid Rule Set.

Further Reading

Please visit our white paper on monitoring IIS logs.
