Serial Port Monitor

 Top  Previous  Next

The serial port monitor allows you to monitor devices attached to local communication ports. Actually, this is not limited to serial (RS232) devices - devices connected via e.g. LPT ports can also be monitored as long as the device provides a proper interface to the port device.



For Example - uses for the serial port monitor may be interfacing to data loggers, "strange" log sources (e.g. PBX call logs) or out-of-band log retrieval (e.g. setting a router to log to the serial port instead to the network and then picking the data from that serial line). Out-of-band log retrieval can also be used to hide the fact that logging is actually taking place.



The serial port monitor works as follows: it listens to the configured port. With each received character, it checks if a configured "message end sequence" is received. If it isn't it continues listening until either another character is received or a timeout occurs.



If either the "message end sequence" is received or the timeout occured, the message is considered to be complete. In this case, an event is generated and that event is scheduled for processing.

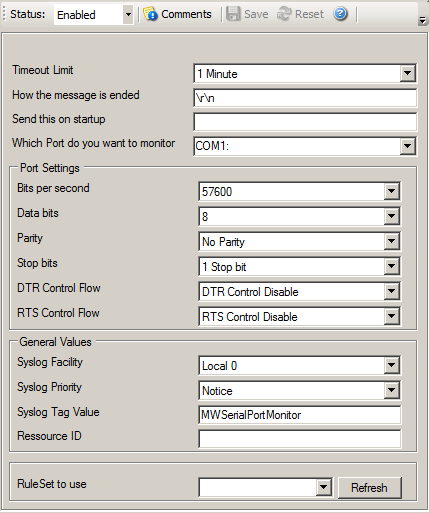

services_027

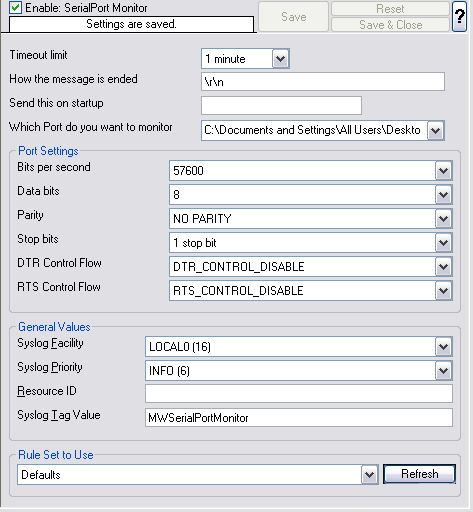

Filter Conditions - Serial Port Monitor





Timeout Limit



This is the maximum amount of time the service waits to receive the "message end characters" from the attached device.





How the message is ended



This is the sequence that, when received, denotes the end of the message. Most often, this is either "\r\n" or "\n" ("\r" represents a CR characters, "\n" represents a LF character).





Which Port do you want to monitor



This is the port that the device is attached to. Most often, this is either COM1: or COM2:. All locally-existing ports can be used. When working locally, the configuration program enumerates the locally available ports. This can be one of the following values:



1.        MSFAX
2.        COM1
3.        COM2
4.        COM3
5.        COM4
6.        FILE
7.        LPT1
8.        LPT2
9.        LPT3
10.        AVMISDN1
11.        AVMISDN2
12.        AVMISDN3
13.        AVMISDN4
14.        AVMISDN5
15.        AVMISDN6
16.        AVMISDN7
17.        AVMISDN8
18.        AVMISDN9





Port Settings



These settings must be set as expected by your device. If in doubt, consult your device manual.





Bits per Seconds



Bits per second can be 110 and go up to 256000, by default 57600 is selected.





Databits



Databits define the number of bits in the bytes transmitted and received.





Parity



With Parity you can configure the Parity scheme to be used. This can be one of the following values:





1.        Even
2.        Mark
3.        No parity
4.        Odd
5.        Space





Stop bits



You can configure the Number of stop bits to be used. This member can be one of the following values:



1.        1 stop bit
2.        1.5 stop bits
3.        2 stop bits





DTR Control Flow



DTR (data-terminal-ready) flow control. This member can be one of the following values:



1.        DTR_CONTROL_DISABLE - Disables the DTR line when the device is opened and leaves it disabled.
2.        DTR_CONTROL_ENABLE - Enables the DTR line when the device is opened and leaves it on.
3.        DTR_CONTROL_HANDSHAKE - Enables DTR handshaking.





RTS Control Flow



RTS (request-to-send) flow control. This member can be one of the following values:



1.        RTS_CONTROL_DISABLE - Disables the RTS line when the device is opened and leaves it disabled.
2.        RTS_CONTROL_ENABLE - Enables the RTS line when the device is opened and leaves it on.
3.        RTS_CONTROL_HANDSHAKE - Enables RTS handshaking. The driver raises the RTS line when the "type-ahead" (input) buffer is less than one-half full and lowers the RTS line when the buffer is more than three-quarters full.
4.        RTS_CONTROL_TOGGLE - Specifies that the RTS line will be high if bytes are available for transmission. After all buffered bytes have been sent, the RTS line will be low.





Syslog Facility



The Syslog facility to be assigned to events created by the service. Most useful if the message shall be forwarded to a syslog daemon.





Syslog Priority



The Syslog priority to be assigned to events created by the service. Most useful if the message shall be forwarded to a syslog daemon.





Resource ID



The Resource ID to be assigned to events created by the service. Most useful if the message shall be forwarded to a Syslog daemon.





Syslog Tag Value



The syslog tag value to be assigned to events created by the service. Most useful if the message shall be forwarded to a syslog daemon.





Default Ruleset Name



Name of the rule set to be used for this service. The Rule Set name must be a valid Rule Set.
