Passive Syslog Listener¶

The Passive Syslog Listener Service is a TCP based Listener Service that sends messages from a Syslog Queue to any remote host, that connects to it. Connections can be secured with TLS including certificate based authentication. Additionally, a greeting and response message can be configured as well.

In order to use the Passive Syslog Listener, you have to configure at least one Syslog Queue Action within your configuration first!

When configured and running, you can click the Test Passive Syslogserver Button in order to open a new window that will help you testing the Passive Syslog Listener. Make sure the Service is started (or restarted) after you finished the configuration of the Passive Syslog Listener. The Testwindow will automatically be filled with correct properties and is ready to go. If the test succeeds, the datagrid should rapidly fill with queued syslog messages.

Service - Passive Syslog Listener

Internet Protocoltype¶

File Configuration field:: nInetType
Description:: Select the desired protocol type. IPv4 and IPv6 are available. The IPv6 protocol needs to be properly installed in order to be used. Note that one Service can only handle IPv4 or IPv6, so if you want to use both protocols, you will need to create two separate services.

Protocol Type¶

File Configuration field:: nProtocolType
Description:: Currently only TCP is supported for the Passive Syslog Listener.

IP Address¶

File Configuration field:: nProtocolType
Description:: The Syslog Server can now be bound to a specific IP Adress. You can either use an IPv4, an IPv6 Address, or a Hostname that resolves to an IPv4 or IPv6 Address. This feature is useful for multihome environments where you want to run different Syslog Servers on different IP Addresses. Please note that the default IP Address 0.0.0.0 means ANY IPv4 Address and "::" means all available IPV6 Addresses.

Listener Port¶

File Configuration field:: nListenPort
Description:: The port the Syslog server listens on. The typical (standard) value is 514. This should be changed only if there is a definite need for it. Such a need typically arises from security concerns. If the port is changed, all reporting devices (routers, printers …) must also be configured to use the non-standard port.

General Options¶

../_images/passivesysloglistener-general.png

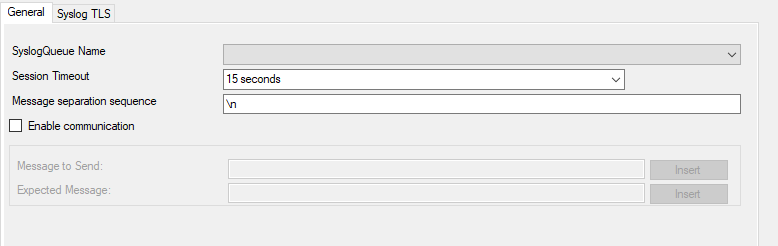

Service - Passive Syslog Listener General Tab

SyslogQueue Name¶

File Configuration field:: szSyslogQueue
Description:: Selects the SyslogQueue to be used by this Service. Must be set to a valid SyslogQueue. See SyslogQueue Action for more about Syslog Queues.

Session Timeout¶

File Configuration field:: nTimeOutSession
Description:: One of the TCP-specific options is the session timeout. This value declares, how long a TCP session may be kept open, after the last package of data has been sent. You can by default set values between 1 second and 1 day or you can use a custom value with a maximum of 2147483646 milliseconds. If you wish to disable the session timeout, you can use a custom value of 0 milliseconds to disable it.

Message separation sequence¶

File Configuration field:: szTCPMsgSep
Description:: This determines how you want to separate the messages. By default \n is the value for this, as most times a message ends with a carriage return and/or a line feed. But, you can choose your own separation sequence here as well.

Enabled communication¶

File Configuration field:: nEnableCommunicate
Description:: Activate this setting when you want to Send and Receive an expected message after the connection is established.

Message to Send¶

File Configuration field:: szMessageToSend
Description:: Defines the message send to the Client after the connection is established. The Passive Syslog Listener will close the connection if the message does not match.

Expected Message¶

File Configuration field:: szMessageExpected
Description:: Defines the message to be expected from the Client after our message was send. The Passive Syslog Listener will close the connection if the message does not match.

Syslog TLS¶

../_images/passivesysloglistener-tls.png

Service - Passive Syslog Listener TLS Tab

Enable SSL/TLS Encryption¶

Note: if this Option is enabled, NON-SSL Clients will be able to connect to this Service.

File Configuration field:: nUseSSL
Description:: This option enables SSL/TLS encryption for your syslog server. Please note, that with this option enabled, the server only accepts SSL/TLS enabled senders.

TLS Mode¶

File Configuration field:

nTLSMode

Description:

The TLS mode can be set to the following:

Anonymous authentication Default option, which means any client certificate will be accepted, or even none.

x509/name (certificate validation and name authentication) When this mode is selected, the subject within the client certificate will be checked against der permitted peers list. This means the Syslog Server will only accept the secured connection if it finds the permitted peer in the subject.

x509/fingerprint (certificate fingerprint authentication) This mode creates a SHA1 Fingerprint from the client certificate it receives, and compares it to fingerprints from the permitted peers list. You can use the debuglog to see fingerprints of client certificates which were not permitted.

x509/certvalid (certificate validation only) A Syslog Sender is accepted when the client certificate is valid. No further checks are done.

Select common CA PEM¶

File Configuration field:: szTLSCAFile
Description:: Select the certificate from the common Certificate Authority (CA), the syslog receiver should use the same CA.

Select Certificate PEM¶

File Configuration field:: szTLSCertFile
Description:: Select the client certificate (PEM Format).

Select Key PEM¶

File Configuration field:: szTLSKeyFile
Description:: Select the keyfile for the client certificate (PEM Format).

Permitted Peers¶

Permitted Peername/SHA1/etc.¶

File Configuration field:: szIP_[n]
