ODBC Database Options

Use database logging to store messages into a database.

Database logging allows writing incoming events directly to any ODBC - compliant database (virtually any database system currently available for the Windows operating system supports ODBC). We support any database system that provides OLEDB or ODBC drivers. This includes Microsoft JET databases (as used by Microsoft Access), Microsoft SQL Server, MySQL, Oracle, PostgreSQL, Sybase, and many other database systems.

Once stored inside the database, different message viewers as well as custom applications can easily browse them. The defaults for the write database action are suitable Adiscon Loganalyzer (web interface).

The database format can be fine-tuned. This is most useful if you intend to run some additional analysis on the database. Also, in high volume environments, tuning the database action to exactly those fields need helps getting best performance out of the database.

The main feature of the “Write To Database” property sheet is the field list. The default reflects the typical assignment of event properties to database columns. However, you can modify this assignment in any way you like. You only need to keep in mind that Adiscon analysis products need the database contents as specified. As such, malfunctions may occur if you modify the database assignments and then use these tools.

Connection Options

• Action - ODBC Database Connection*

Configure DSN

If you click on this button, it starts the ODBC administrator of the operating system where you can add, edit, or remove a data source(s).

Note: The DSN must be a System DSN. Verify Database The configuration client will attempt to establish a database connection to your configured ODBC System DSN.

Create Database

If you click on this button, it will create the default tables for SystemEvents and SystemEventsProperties into the database specified in the DSN.

DNS

File Configuration field:

szODBCDsn

Description:

This is the name of the system data source (DSN - data source name) to be used when connecting to the database. Create this in ODBC manager (can be found in control panel under Windows). Press the “Data Sources (ODBC)” button to start the operating system ODBC administrator where data sources can be added, edited, and removed.

Note: The DSN must be a system DSN, not a user or file DSN. The DSN must be configured to have the correct connection parameters (for example database type and name, server name, authentication mode etc.).

User-ID

File Configuration field:

szODBCUid

Description:

The User-ID used to connect to the database. It is dependent on the database system used if it is to be specified (e.g. Microsoft Access does not need one, while Microsoft SQL Server can force you to use one). If in doubt, please see your database administrator

Password

File Configuration field:

szODBCPwd

Description:

The password used to connect to the database. It must match the “User-ID”. Like the User ID, it is dependent on the database system if a password is needed. Passwords can be stored either encrypted or unencrypted. We highly recommend storing them encrypted.

Enable Encryption

File Configuration field:

nODBCEnCryption

Description:

Check to store the ODBC password encrypted. If left unchecked, the password is stored unencrypted. We strongly recommend checking this box.

If you store the password unencrypted for some reason, please be aware of the security implications. In this case, we recommend using an account with limited access privileges. Even when stored encrypted, we recommend using limited privileges accounts. We are not applying strong cryptography here.

SQL Connection Timeout

File Configuration field:

nSQLConnectionTimeOut

Description:

Defines the Timeout for the connection.

SQL Options

Table Name

File Configuration field:

szTableName

Description:

The name of the table to log to. This name is used to create the SQL insert statement and must match the database definition. Default is “SystemEvents”.

SQL Statement Type

File Configuration field:

nSQLStatementType

Description:

You can select between a INSERT and Call Statement, which is Microsoft specific for Stored Procedures. This means also this type of SQL Statement will only work if MSSQL is used as database. If you select MSSQL Call Statement, the tablename field will automatically be used as stored procedure name.

Output Encoding

File Configuration field:

nOutputEncoding

Description:

This setting is most important for Asian languages. A good rule is to leave it at “System Default” unless you definitely know you need a separate encoding. “System Default” works perfect in the far majority of cases, even on Asian (e.g. Japanese) Windows versions.

Insert NULL Value if string is empty

File Configuration field:

nSQLConnectionTimeOut

Description:

This option inserts a NULL value, if a property is empty.

Enable Detail Property Logging

File Configuration field:

nPropertiesTable

Description:

This option logs event properties other than the standard properties to the SystemEventProperties table. A single event can potentially have multiple properties, so selecting this option can result in multiple writes. With Syslog data, however, there are seldom any additional properties. They most often occur when you use the “Post Process” action to define your own properties. Additional properties are typically found in SETP received data originating from an Event Log Monitor, file monitor, or database monitor (plus other monitors, but these are the most prominent ones).

For example, with Event Log data received via SETP, these properties contain the actually Windows event properties and the event data. Please note that this does not apply to event log messages received via Syslog, because they are no native events but rather Syslog data.

Please make sure you actually need this before activating it. As a side note: some of the MonitorWare Console reports may need detail logging.

Detaildata Tablename

File Configuration field:

szPropertiesTableName

Description:

Tablename for Detail Property Logging

Maximum value length (Bytes)

File Configuration field:

nMaxValueLength

Description:

Maximum length in bytes for values stored in Detaildata table.

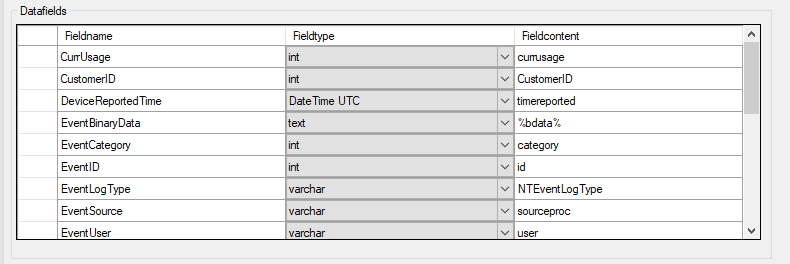

Datafields

The provided fieldnames are those that Adiscon’s schema uses - you can add your own if you have a need for this.

You can edit the field list by selecting a row and then modifying the text fields above the table. You can insert and delete rows by selecting the respective button. If you press delete, the currently selected row is deleted.

For string data types, you can use the property replacer. This can be helpful if you would like to store a substring. For example, if you intend to store only the first 200 characters of each message, you can use %msg:1:200%.

• Action - ODBC Database Datafields*

Fieldname

File Configuration field:

szFieldName_[n]

Description:

The Fieldname is the database column name. It can be any field inside the table.

Fieldtype

File Configuration field:

nFieldType_[n]

• 1 = varchar

• 2 = int

• 3 = text

• 4 = DateTime

Description:

Fieldtype is the data type of the database column. It must reflect the column type selected in the database. It must also be consistent in type with the actual property that must be stored. For example, an integer type property like the syslogpriority can be stored in a varchar column. A string data type like the syslogtag can - for obvious reasons - not be stored in an integer column.

Fieldcontent

File Configuration field:

szFieldContent_[n]

Description:

Finally, the Fieldcontent is the event property. For a complete list of supported properties, see event properties

Action Queue Options

• Action - Send RELP Action Queue*

Use Diskqueue if connection to Syslog server fails

File Configuration field:

nUseDiscQueue

Description:

Enable diskqueuing syslog messages after unexpected connection loss.

Split files if this size is reached

File Configuration field:

nDiskQueueMaxFileSize

Description:

Files will be split until they reach the configured size in bytes. The maximum support file size is 10485760 bytes.

Diskqueue Directory

File Configuration field:

szDiskQueueDirectory

Description:

The directory where the queue files will be generated in. The queuefiles will be generated with a dynamic UUID bound to the action configuration.

Waittime between connection tries

File Configuration fields:

nDiskCacheWait

Description:

The minimum waittime until the Syslog Action retries to establish a connection to the Syslog server after failure.

Overrun Prevention Delay (ms)

File Configuration field:

nPreventOverrunDelay

Description:

When the Action is processing syslog cache files, an overrun prevention delay can be added to avoid flooding the target Syslog server.

Double wait time after each retry

File Configuration field:

bCacheWaittimeDoubling

Description:

If enabled, the configured waittime is doubled after each try.

Limit wait time doubling to

File Configuration field:

nCacheWaittimeDoublingTimes

Description:

How often the waittime is doubled after a failed connection try.

Enable random wait time delay

File Configuration field:

bCacheRandomDelay

Description:

If enabled, a some random time will be added into the waittime delay. When using many syslog senders, this can avoid that all senders start sending cached syslog data to the Syslog server at the same time.

Maximum random delay

File Configuration field:

nCacheRandomDelayTime

Description:

Maximum random delay time that will be added to the configured waittime if Enable random wait time delay is enabled.
